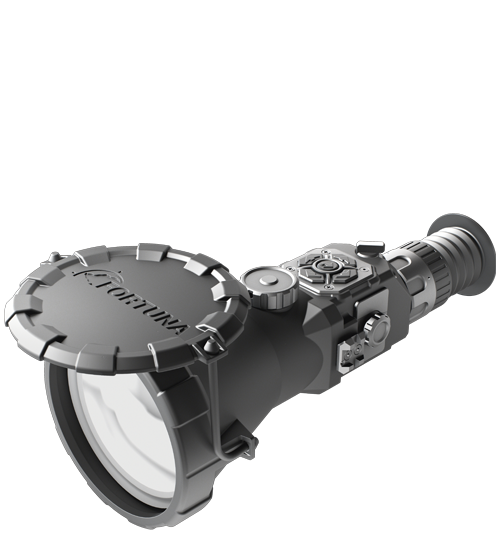

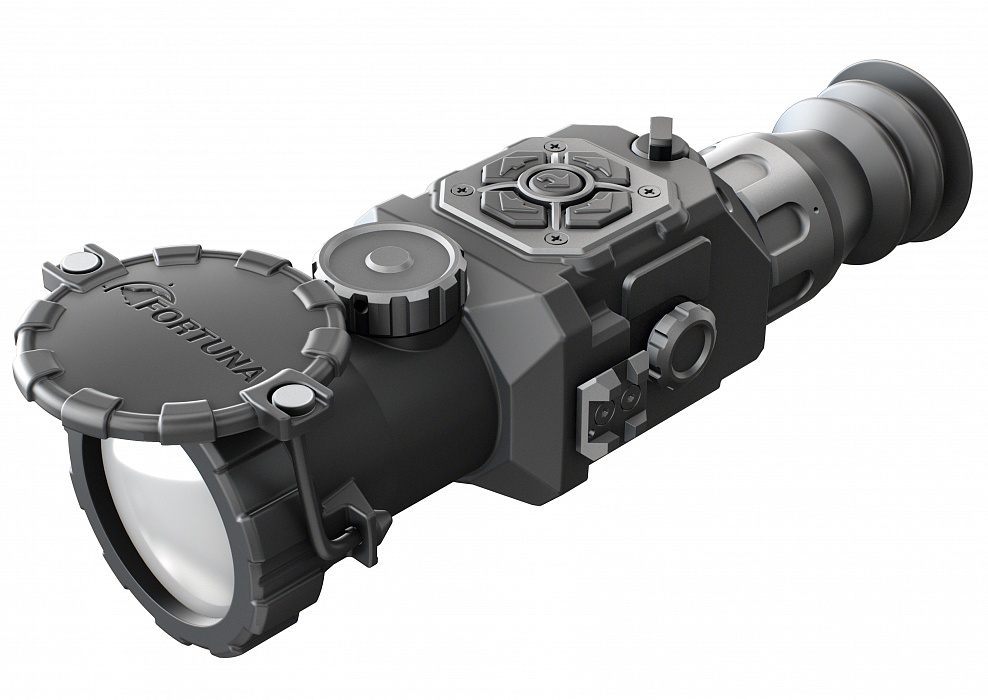

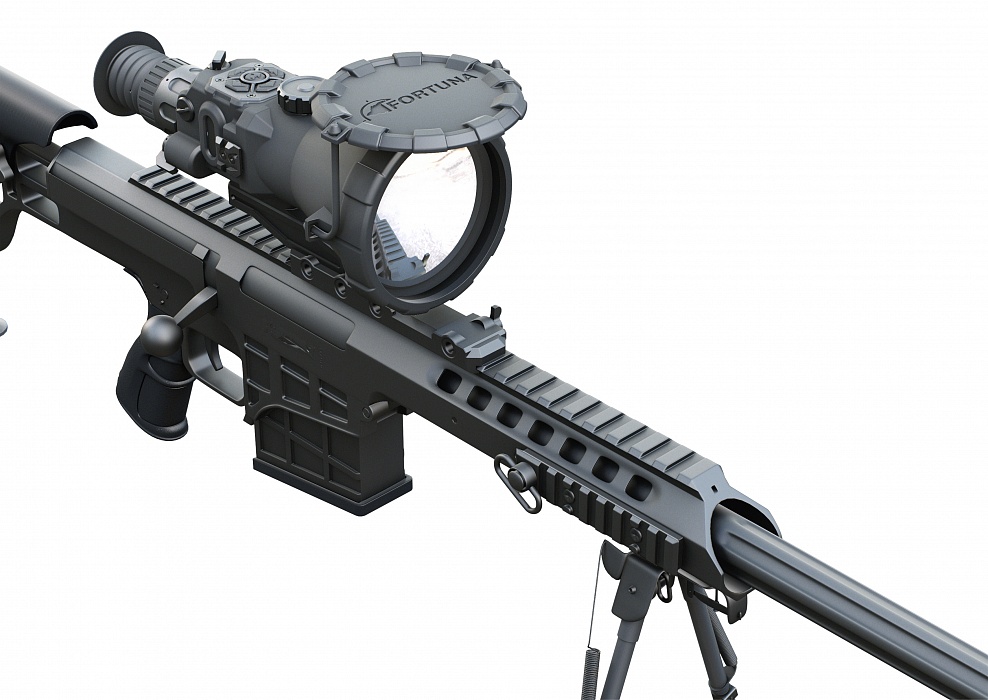

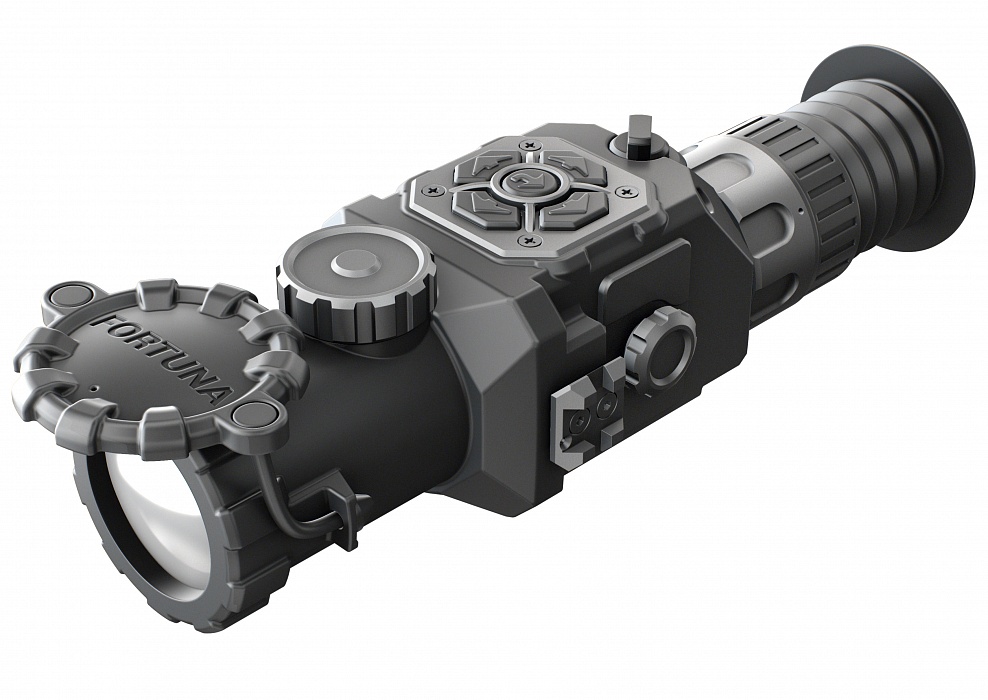

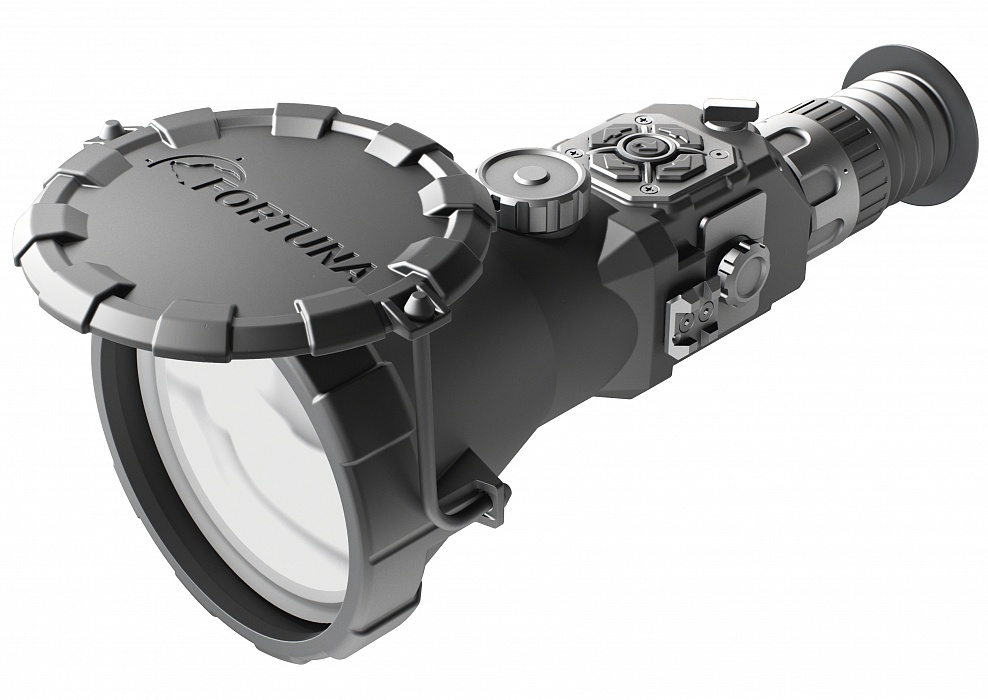

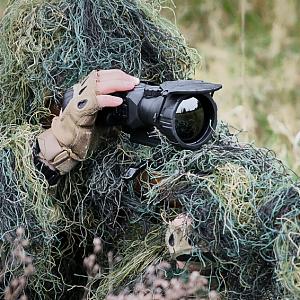

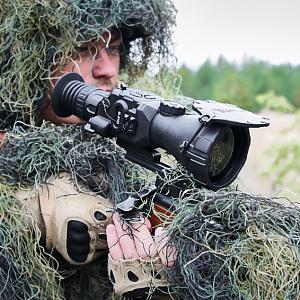

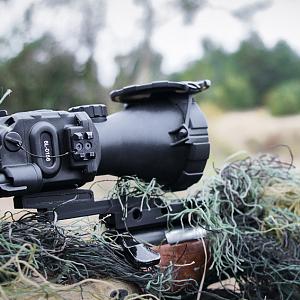

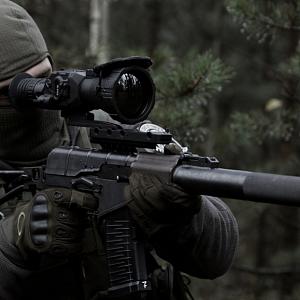

FORTUNA GENERAL ONE

Thermal imaging sight

Fortuna General One is the flagship range of Fortuna thermal scopes. It was created for fulfilling even the hardest tasks in regular and extreme weather conditions as well and at any time of day and night.

FEATURES

Thermal resolution 384 х 288 / 640 х 480, 17 μm, 50 / 25 Hz
Powerful high-aperture lenses
Maximum range of detection from 1100 to 3000 meters (depending on model)
Light-weight rubber-coated sealed body made of aviation aluminium alloys
Resistant to large calibers recoil
Automatic silent shutterless calibration
User-friendly digital menu
Different colour palettes
Up to 10 editable, quick-switchable zeroing profiles
2х, 4х, 8х (depending on model) digital zoom with crosshair remaining in the center of view
Compatible with USB external power banks
Video output for video/photo recording
Compatible with Fortuna LRF laser rangefinder

TECHNICAL SPECIFICATIONS

Model	3M/6M	3L/6L	3XL/6XL
Core type		384х288 / 640x480 pixels, 17 μm
Spectral range, μm		7.5÷14
Frame frequency, Hz	50 / 9, 25 / 9
Sensitivity, mK		<50
Calibration		electronic, silent
Lens	50mm, F/1.2	75mm, F/1.0	100mm, F/1.0
Optical zoom	3.5х / 2.1x	5.3х / 3.2x	7.1х / 4.2x
Field of View, deg	7.4°х5.6°/ 12.3°х9.3°	5°х3.7°/ 8.3°х6.2°	3.7°х2.8°/ 6.2°х4.7°
Focusing range, manual, m	from 5 to ∞	from 10 to ∞	from 10 to ∞
Pace of corrections at 100m distance, cm	1.7/2.8	1.1/1.9	0.9/1.4
Eye relief, mm		52
Dioptric adjustment, diopter		-5...+5
Display		AMOLED 800х600
Power supply		Up to 7.6 V (CR123A x 2 pcs.)
Minimal continuous run time at 25°C		5 hours
Protection class		IP67
Maximum impact load		500g
Operating temperature, °C		-30…+50
Dimensions, mm	237 x 67 x 81	275х100 х100	290 х 116 х 116
Weight without batteries, without mount, gram	725	946	1237
